  • DOOM
  • Blazor
  • Making the port
  • Tips and Tricks
  • Released in 1993 for DOS
  • One the most successful First person shooters
  • Basically, it's an engine + a WAD file
  • Ported to a LOT of platforms

http://mrglitchsreviews.blogspot.com/2012/09/doom-console-ports.html

https://www.link-cable.com/top-10-weird-doom-ports/

Microsoft and Doom

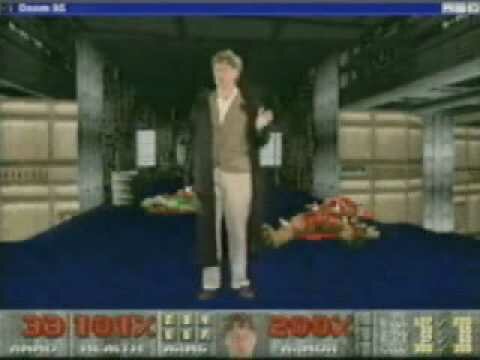

  • The game was used to demosntrate Windows 95
  • Microsoft bought Zenimax in 2020

Source: https://www.yahoo.com/news/1995-bill-gates-gave-crazy-180900044.html

Blazor

  • Framework for building web apps
  • Similar to Angular, Vue, etc.
  • Uses .net and C# instead of JS
  • .Net code can run in either on:
    • the server
    • or the browser: Blazor WASM

Blazor WASM runs .net in the browser thanks to WebAssembly

Source: https://docs.microsoft.com/fr-fr/aspnet/core/blazor/?view=aspnetcore-5.0

@page "/counter"

<h1>Counter</h1>
<p>Current count: @currentCount</p>
<button @onclick="IncrementCount">Click me</button>

@code {
    private int currentCount = 0;
    private void IncrementCount() { currentCount++; }
}

A Razor component

ManagedDoom

  • C# Port of LinuxDoom
  • Uses SFML for graphics + audio + input
  • https://github.com/sinshu/managed-doom
  • Just clone and run the solution to start playing

Summary

  • Doom has a LOT of ports
  • No port yet in Blazor
  • A .net port already available

Let's make Balzor Doom

Manged Doom architecture

GameLoop

pressed keys (keyup)

release keys (keydown)

['Z', 'Q']

['space']

Frame buffer

Audio buffer

SFML Audio

SFML Video

GameLoop iteration (Doom Engine)

wad

DOOM.wad

Constraints

  • SFML not available in Blazor
  • Cannot draw frame and play audio from C#
    • Must use JS Canvas and Audio
  • C# needs to send buffers to JS
    • Fast: WebAssemblyJSRuntime.InvokeUnmarshalled
      • used for image
    • Much slower: WebAssemblyJSRuntime.Invoke
      • used for audio (because I couldn't get the former to work 😔)
  • .net WASM runtime is slower than native runtime
    • Optimisation in the engine are necessary

Game architecture

requestAnimationFrame

Frame buffer

Audio buffer

WebAssemblyJSRuntime.Invoke

AudioContext

Canvas

pressed keys (keyup)

release keys (keydown)

['Z', 'Q']

['space']

GameLoop iteration (Doom Engine)

wad

DOOM.wad

Game architecture

  • Two sides: C# and JS
  • A Razor component makes the link between them
  • C# runs the doom engine
    • Input: wad file and key presses
    • Output: image and audio buffers
  • JS updates the canvas and the audio
    • Input: image and audio buffers
    • Output: key presses

Technical details

show me some code !

<label>WAD url (shareware wad used by default)</label>
<input type="text" value="@wadUrl" />

<button class="btn btn-secondary" @onclick="@StartGame">Start game</button>

<canvas id="canvas"  Width="320" Height="320"
	style="width:100%; height:auto; image-rendering: pixelated;">
</canvas>


@code {
    protected override async Task OnAfterRenderAsync(bool firstRender)
    {
        await StartGame();
    }

    private async Task StartGame()
    {
        var stream = await Http.GetStreamAsync(wadUrl);
        var commandLineArgs = new ManagedDoom.CommandLineArgs(args);
        app = new ManagedDoom.DoomApplication(commandLineArgs, configLines, Http,
         stream, jsRuntime, jsProcessRuntime, webAssemblyJSRuntime, wadUrl);
        jsProcessRuntime.InvokeVoid("gameLoop");
    }

    [JSInvokable("GameLoop")]
    public static void GameLoop(uint[] downKeys, uint[] upKeys)
    {
        app.Run(downKeys, upKeys);
    }
}

The DOOM component

window.gameLoop = function (timestamp) {
  if (timestamp - lastFrameTimestamp >= frameTime) {
    lastFrameTimestamp = timestamp;
    DotNet.invokeMethod('BlazorDoom', 'GameLoop', downKeys, upKeys);
    upKeys.splice(0, upKeys.length);
  }

  window.requestAnimationFrame(window.gameLoop);
}

Gameloop orchestration

Audio playback

0.5 1 0.75 0 -0.75 -1 -0.5 0

https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Audio_concepts

AudioContext

playByteArray(samples, sampleRate) {
    const audioBuffer = this.context.createBuffer(
      1,
      length,
      this.context.sampleRate
    );
    var channelData = audioBuffer.getChannelData(0);
    for (let i = 0; i < length; i += 2) {
      channelData[i] = samples[i] / 0xffff;
    }

    var source = this.context.createBufferSource();
    source.buffer = audioBuffer;
    source.connect(this.context.destination);
    source.start();
  }

Audio playback

var audioData = new object[] {
	SoundBuffer.samples,
	SoundBuffer.sampleRate,
	0,
	Position
};

DoomApplication.WebAssemblyJSRuntime.Invoke<object>(
	"playSound",
	audioData);
0 1 2 3 1 1 2 3
0 1 2 3

How a frame is built

2 2 0 1

Frame data

Color palette

Frame

var args = new object[] { screen.Data, colors, 320, 200 };
DoomApplication.WebAssemblyJSRuntime.InvokeUnmarshalled<byte[], uint[], int>
	("renderWithColorsAndScreenDataUnmarshalled", screen.Data, colors);

Sending the frame to JS
0 1 2 3 1 1 2 3
0 1 2 3
2 2 0 1

Frame data

Color palette

Frame

0123

1123

2201

0

Bit shifting required in JS side !

window.renderWithColorsAndScreenDataUnmarshalled = (screenData, colors) => {
  const canvas = document.getElementById("canvas");
  var context = canvas.getContext("2d");
  context.imageSmoothingEnabled = false;
  const imageData = context.createImageData(width, height);
  let x = 0;
  let y = 0;
  for (var i = 0; i < (width * height) / 4; i += 1) {
    const screenDataItem = BINDING.mono_array_get(screenData, i);
    let dataIndex;
    for (var mask = 0; mask <= 24; mask += 8) {
      dataIndex = y * (width * 4) + x;
      setSinglePixel(imageData, dataIndex, colors, (screenDataItem >> mask) & 0xff);
      if (y >= height - 1) { y = 0; x += 4; } else { y += 1; }
      dataIndex = y * (width * 4) + x;
    }
  }
  context.putImageData(imageData, 0, 0);
};
function setSinglePixel(imageData, dataIndex, colors, colorIndex) {
  const color = BINDING.mono_array_get(colors, colorIndex);
  imageData.data[dataIndex] = color & 0xff;
  imageData.data[dataIndex + 1] = (color >> 8) & 0xff;
  imageData.data[dataIndex + 2] = (color >> 16) & 0xff;
  imageData.data[dataIndex + 3] = 255;
}

Frame display

Porting steps

  • Remove SFML and unavailable methods
  • Get at least image display
  • Optimize image processing
  • Keybord input processing
  • Sound effects
  • Optimize audio
  • Mouse input
  • Game music
  • More optimizations
  • Bug fixes
  • Code cleanup

Done

Fast Porting methodology

  • Remove SFML and make the app compile
    • Replace with empty methods and put "TODO: implement"
  • Implement necessary methods little by little
    • Try to display frames first
  • Start with quick and non-optimized code (static, raw values)
  • Read Doom-Wiki and SFML documentation only when necessary
    • Used to understand image buffer structure
  • Side project duration: 2 weeks

Tips and lessons learned

  • Array.Copy is slow on Big arrays (for now ?)
    • Do it in JS side if possible
  • InvokeUnmarshalled is very fast
    • But has problems with certain data types
  • Extensive logging from Blazor will sloooow you app

  • window.requestAnimationFrame allows to pace the frames

Links

  • https://mspoweruser.com/this-doom-digital-camera-source-port-is-amazing-and-bizarre/
  • https://www.link-cable.com/top-10-weird-doom-ports/
  • pixabay.com
